Sennheiser EW-D ME2/835-S SET U1/5

Description

Product information ”Sennheiser EW-D ME2/835-S SET U1/5”

• Digital wireless system without noise, interference or electrostatic disturbances
• UHF transmission with significantly greater range, reliability and scalability
• Mobile app optimises setup and operation without complicated menus
• Automated setup provides reliable connections with minimal time and effort
• Up to 2,240 selectable frequencies
• Lithium-ion battery pack for up to 12 hours operating time (with AA batteries up to 8 hours operating time)
• 56 MHz bandwidth supports up to 90 channels
• 134 dB dynamic range of the transmitter preserves every detail, even during extremely dynamic performances
• Frequency range U1/5: 823.2 – 831.8 MHz & 863.2 – 864.8 MHz
• Audio frequency response: 20 Hz – 20 kHz (-3 dB) at 3 dBFS
• Transmit power: max. 10 mW
• Stationary receiver EW-D EM:
  • Dimensions: 212 x 44 x 189 mm
  • Audio output level: 18 dBu max.
  • Transmit power: max. 10 mW
  • Weight: approx. 1000 g (without antennas and power supply)
• Bodypack transmitter EW-D SK:
  • Weight: approx. 120 g
  • Power supply: 2 x AA batteries 1.5 V (alkaline) or BA 70 rechargeable pack
  • Transmit power: max. 10 mW
  • Dimensions: 63 x 80 x 20 mm (without antenna
• Handheld transmitter EW-D SKM-S:
  • Weight: approx. 304 g (with MMD 835 microphone module); approx. 195 g (without microphone module)
  • Power supply: 2 x AA batteries 1.5 V (alkaline) or BA 70 rechargeable pack
  • Transmit power: max. 10 mW
  • Dimensions: 50 x 268 mm (with MMD 835 microphone module); 40 x 200 mm (without microphone module)
• Microphone module MMD 835:
  • Transducer principle: dynamic
  • Polar pattern: cardioid
  • Maximum sound pressure level at 1 kHz: 154 dB
  • Dimensions: 405 x 350 x 73 mm
  • Weight: 3.1 kg
• Lavalier microphone ME 2:
  • Polar pattern: omnidirectional
  • Audio transmission range: 50 to 18,000 Hz
  • Transducer principle: permanently polarised condenser microphone
  • Max. sound pressure level: 130 dB
  • Cable length: approx. 1.60 m
  • Connection plug: 3.5 mm jack

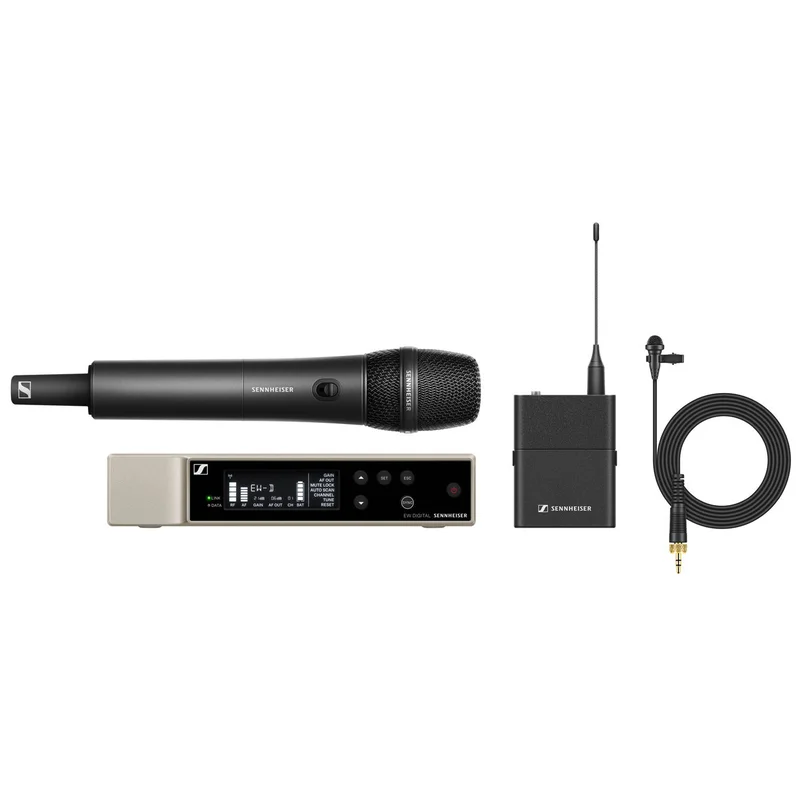

• Included:
  • EW-D EM rack receiver
  • EW-D SK bodypack transmitter
  • EW-D SKM-S handheld transmitter
  • ME 2 lavalier microphone
  • MMD 835 microphone module
  • Microphone clip MZQ 1
  • 2 rod antennas
  • Power supply with country adapters
  • Rack mounting set
  • 4 rubber feet
